ELECTRA-KOOL™ MODEL 1000 CENTRIFUGAL BLOWER
An Electra-Kool™ industrial blower is the perfect solution for cooling & ventilating your electrical cabinet, DC motor, or other industrial area while keeping fine dust and dirt out. Prevent internal components and electrical enclosures from malfunctioning due to excessive heat or dust. Electra-Kool™ is a fraction of the price of an air conditioner and or compressed air device, saving you both operating and maintenance costs for years.
ELECTRA-KOOL™ 1200 CFM INDUSTRIAL BLOWER FEATURES:
- 1180-1200 CFM of air flow.
- Recommended capacity: 500 cubic foot enclosure OR 125 HP DC motor
- 28” height, 13” deep, 15” wide
- Rugged cast aluminum housing
- Heavy-Duty Steel Impeller
- 6.5” square flange (6” hole to hole) that mounts easily to the side or top of any enclosure
- Long lasting filter life due to huge surface area… 95 SQ FT
- Simple assembly: Filters require just one wingnut – great for quick cleaning
- Finger-guards installed on both the inlet and outlet for your safety
- One year manufacturing warranty – just in case.
MODEL 1000 PART NUMBERS & SPECS
| 3 Phase Part # | Single Phase Part # | FILTER | Height | Width | Depth | Accessories |
|---|---|---|---|---|---|---|
10292 |
10290 |
Pleated Paper (fine) |
28″ |
15″ |
13″ |
Prefilter Wrap, |
10297 |
10029 |
Metal Mesh (coarse) |
28″ |
15″ |
13″ |
Filter Mounting Hardware Only |
10288 |
10286 |
Polyester (medium) |
28″ |
15″ |
13″ |
Prefilter Wrap |
10296 |
10294 |
HEPA (very fine) |
28″ |
15″ |
13″ |
Prefilter Wrap, |
10045 |
10210 |
NONE |
15″ |
15″ |
13″ |
Filter Mounting Hardware Only |
MODEL 1000 MOTOR SPECIFICATIONS
Three Phase
1 HP, 3450 RPM, 56C Frame
208-230/460V, 60Hz TEFC
Amps: 3.0 @ 208V, 2.8 @ 230V, 1.4 @ 460V
UR & CSA Listed
Single Phase
1 HP, 3450 RPM, 56C Frame, Capacitor Start
115/208-230V, 60Hz TEFC
Amps: 11.8 @ 115V, 6.3 @ 208V, 5.9 @ 230V
UR & CSA Listed
This Rugged 1000 CFM Blower is STOCKED for SAME DAY SHIPPING.
MODEL 1000 FILTER SPECIFICATIONS
Pleated Paper Filter (FINE filtration, shown on the left in the picture above)
Rated for 99.9% efficiency @ 0.5 microns nominal and 99.97% @ 1 micron nominal
Moisture & oil resistant for consistent performance in all climates
Filters out dust too small to see with the naked eye
HEPA Filter (VERY Fine filtration)
Filter rated 99.97% @ 0.3 microns nominal.
PREFILTER WRAPS are provided along with Blowers with Pleated Paper or HEPA filters
½” thick, non-woven polyester to pick up larger particles and extend the life of the main filter

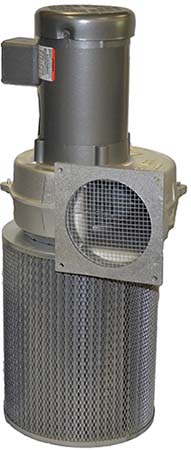

Metal Mesh filter (coarse filtration, shown in the picture at right above)
Rated 60% @ AC Fine Dust
Four layers of corrugated aluminum mesh
Long-lasting, corrosion resistant protection against coarse particulates
POLYESTER FILTERS (Medium Filtration)
Rated 98% @ 10 microns nominal
Coarser filtration than Pleated Paper but easier to wash and longer lasting
Moisture & oil resistant, low pressure-drop
MODEL 1000 PARTS & SPARE FILTERS
| Part # | Description (sometimes seen along with P/N) | TYPE | DETAILS |
|---|---|---|---|
10220 |
1000-PL |
Pleated Paper Filter (Fine Filtration) |
13.5″ height x 10.5″ OD |
10221 |
1000-MM |
Metal Mesh Filter (coarse filtration) |
13.5″ height x 10.5″ OD |
10231 |
1000-PE |
Polyester Filter (medium filtration) |
13.5″ height x 10.5″ OD |
10226 |
1000-HEPA |
HEPA Filter (very fine filtration) |
13.5″ height x 10.5″ OD |
10222 |
1000-PFB |
Prefilter Wrap |
1/2″ Woven Polyester, extends life of main filter |
10170 |
1000-PPKIT |
Pleated Paper FilterKIT™ |
Includes PP Filter, prefilter & mounting hardware |
10175 |
1000-MMKIT |
Metal Mesh FilterKIT™ |
Includes MM Filter & mounting hardware |
12813 |
1000-IMPKIT |
Impeller Replacement Kit |
Includes new impeller (squirrel cage) and sealant |
